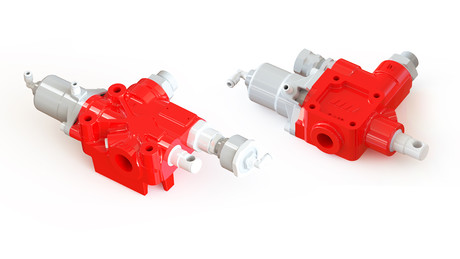

Pneumatic tipping valves

  •   Pneumatic tipping valves

Binotto telescopic cylinders can be supplied with a full range of quality components specially designed and selected to maximize the performance of the complete hydraulic kit.

From decades of experience in manufacturing tipping systems for thousands of customers worldwide, the Binotto wide range of tipping control valves (including electrical, mechanical and pneumatic engage tipping valves with different flow rates - up to 66 GPM) ensures the possibility to fulfill all customers’ requests for any type and any size of vehicle: light, medium, and heavy duty vehicles.

FEATURES

  • Built –in maximum pressure relief valve to protect the tipping cylinder and the hydraulic system
  • High pressure setting of the relief valve also available (3500 PSI)
  • No-return valve included for higher safety
  • Proportional control to regulate the lowering speed of the tipping body
  • Cast iron body with nickel plate spool
  • High performance tipping valve (working temperature from 5º F up to 230º F)

Three way position , compact size, easy to fit, Binotto tipping valves are available with various port configurations (side, top or bottom position) and sizes. They are also designed to be installed directly in our hydraulic tanks for a faster installation and to save mounting space.

With galvanized nodular cast-iron body and nickel plate spool, the Binotto tipping valves are very robust (up to 5700 PSI) and with very precise tolerances to avoid oil leaking.

They are also safe, thanks to a built-in check valve and adjustable max pressure relief valve.

Designed to be operated with our range of remote controllers, the Binotto tipping valves ensure proportional feathering lowering, meaning that adjusting the lever in different angular positions the modular valve provides different speed at lowering.

  •   Pneumatic shift tipping valve

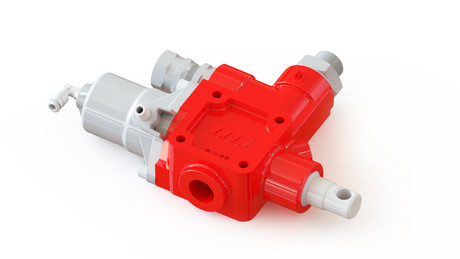

Pneumatic shift tipping valve

Displacement: 39 GPM Side ports available.

  •   Dual pressure pneumatic shift valve

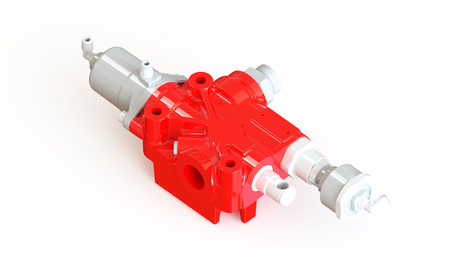

Dual pressure pneumatic shift valve

Displacement: 66 GPM

Double pressure settings:2000 PSI and 3000 PSI.
Ideal for dump and walking floor application combinations.
