Hydraulic GEAR PUMPS

  •   DUMP PUMP BTC and BTG Series

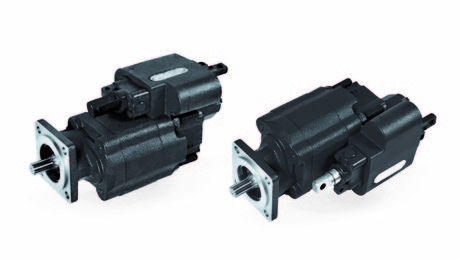

DUMP PUMP - BTC and BTG Series

Dump pumps are the standard equipment for dump trucks and trailers in North America. Available on different configurations and designs.


MAIN FEATURES

  • Mechanical or air shifted options

  • Direct or remote mount configuration

  • Two-line or three-line system designs to use both on intermittent and continuous duty applications

  • Displacement: 22 to 27 GPM on BTC Series / 6 to 17 GPM on BTG Series at 1000 RPM

  • Max Pressure of 2500 PSI

  • Max Speed at 2400 RPM

  •   BTP51 - Birotational gear pump

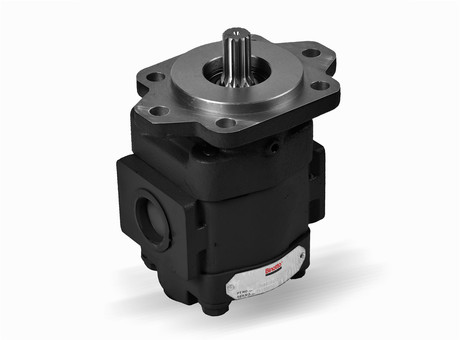

BTP21 - BIROTATIONAL Gear Pump

Bi-rotational, cast iron, heavy duty roller bearing Gear Pump.

Wide variety of port and mounting configurations.

MAIN FEATURES

  • Flow capacities ranging from 3 to 39 GPM at 1000 RPM.

  • Max pressure of 3000 PSI

  • Max speed at 2400 RPM

  •   BTP51 - Birotacional gear pump

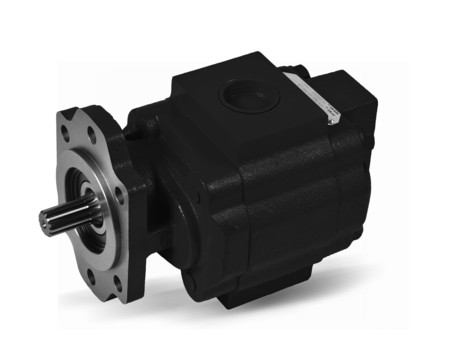

BTP51 - BirotaTional gear pump

Bi-rotational, cast Iron, heavy duty roller bearing Gear Pump.
Wide variety of port and mounting configurations.



MAIN FEATURES

  • Flow capacities ranging from 9 to 50 GPM at 1000 RPM

  • Max pressure of 3000 PSI

  • Max speed at 2400 RPM
